Features
- qVGA (320x240) 3.5", Color, TFT LCD Panel in Landscape format, with 256,000 colors, adjustable LED Backlight, and Touch panel
- Powered by a standard Medallion CPU Module (an SA2410-650 is included) for flexibility, the 32-bit ARM9 processor features 32 kB of cache, 64 MB of SDRAM, and 128 MB or more of NAND flash, plus a separate NOR flash for reliable boot-loader and SW update options
-
Low-power, passive cooling enables fanless operation
-
Low-power, Real-Time Clock (RTC) with Battery Backup included
-
Hidden Memory Card Connector for Secure Digital (SD) and MultiMediaCard (MMC) (for technician-upgradeable storage expansion)
-
Full-speed, USB Host port (USB Type A connector) for expansion or data transfers
-
DUAL Fast Ethernet (10BaseT/100BaseTX) interfaces with RJ45 connectors connected via internal Ethernet Switch
- Buzzer for Audio alerts
-
RS232 serial interface on DE9 connector with standard PC pinout
-
Power options: 10 - 30 VDC or 7 - 24 VAC
- To reduce power consumption, software can turn the backlight intensity ON/OFF and control the brightness
- Ships with the proven Medallion Linux 2.6 plus drivers pre-installed!
Dimensions:
-
Width: 117.35 mm, 4.62"
-
Height: 92.71 mm, 3.65"
-
Depth: 31.75 mm, 1.25"
GUI options include:
- Linux Framebuffer (FB), operating in 16-bit, 65,536-color mode
-
X11 (Xorg using fbdev) on FB for standard Linux/Unix graphics
-
FLTK on X, for a full-featured, extensible, yet Free GUI
-
GTK+ on X, for full PC compatibility
-
QtEmbedded on FB for a contemporary, appealing visual design and enhanced functionality
- We've even ported over obscure GUIs, such as EZWGL, for critical control environments where C++ is not allowed (such as food processing lines)
|

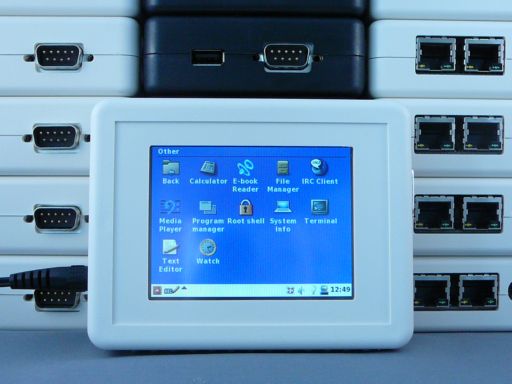

Product Image
enlarge image
Block Diagram
enlarge image
|
